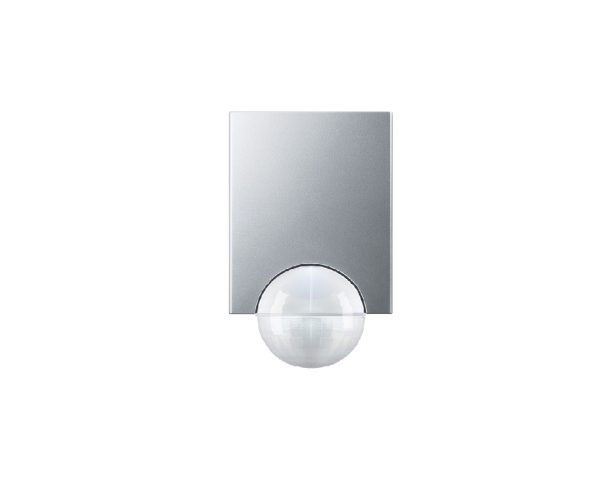

KNX MTN632569 Movement detector ARGUS 220, aluminium

KNX movement detector for outdoors. 220° surface monitoring for large house fronts and
sections of the house. With integrated bus coupler. The physical address is programmed with
a magnet.
■ 360° short-range zone (approx. 4 m radius).
■ Large wiring compartment and plug system.
■ Looping is possible.
■ LED function display for fast alignment at the installation site.
■ Operating elements are protected under the easily accessible cover plate.
■ Flexibly adjustable sensor head.
■ Possible to blank out individual lens areas.
Can be installed on walls and ceilings without additional accessories. Can be mounted on
inner/outer corners and stationary pipes using a mounting bracket.
KNX software functions: Five movement blocks: up to four functions can be triggered per
block. Telegrams: 1 bit, 1 byte, 2 bytes.
Normal operation, master, slave, safety pause, disable function. Sensitivity, brightness and
staircase timer can be set using the ETS or the potentiometer. Self-adjusting staircase timer.
Angle of detection: 220°
Range: max. 16 m
Number of levels: 7
Number of zones: 112 with 448 switching segments
Light sensor: infinitely variable from approx. 3 – 1000 lux, ∞ lux (infinite: movement detection
is independent of the position of the sensor head)
Time: can be set externally from 1 s to approx. 8 min. in 6 levels or via ETS from approx. 3 s
to approx. 152 hours
Sensitivity: infinitely adjustable
Possible settings for sensor head:
Wall mounting: 9° up, 24° down, 12° left/right, ±12° axial
Ceiling mounting: 4° up, 29° down, 25° left/right, ±8.5° axial
EC directives: Low-voltage guideline 2006/95/EC and EMC directive 2004/108/EC
Type of protection: IP 55
Accessories: Mounting bracket MTN565291, Programming magnet MTN639190
Contents: With cover plate and segments to limit the area of detection, screws and plugs.
