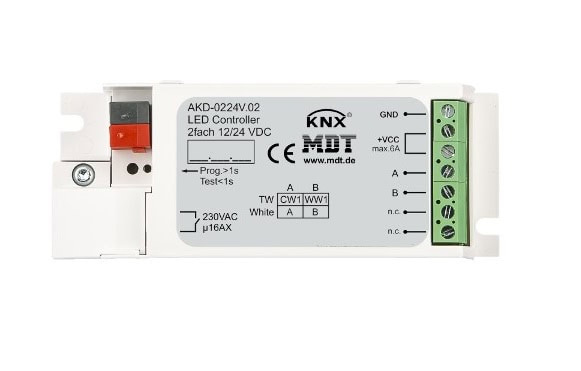

AKD-0224V.02 KNX LED Controller 2-канален, 3/6А
9013 ден
- Production in Germany certified according to ISO 9001
- Comprehensive function extension
- Absolute and relative dimming for HSV colour space and RGB
- Tunable White color temperature control
- Selectable dimming curve and PWM frequency up to 1000Hz
- Global and individual dimming speeds
- Individual and predefined sequences (e.g. TV Simulator)
- Repetition of sequences for automatic colour control
- Suitable for 12/24V CV LED (Common Anode)
3A for each color channel (flush mounted device)
4A for each color channel (MDRC device) - Selectable load distribution:
AKD-0224V.02: 2 channels each 3A
AKD-0324V.02: 3 channels each 3A or 1 ch. 4,50A and 2 ch. 2,25A
AKD-0424V.02: 4 channels each 3A or 1 ch. 5,25A and 3 ch. 2,25A
AKD-0424R2.02: 4 channels each 2A or 1 ch. 3,5A and 3 ch. 1,5A
AKD-0424R.02: 4 channels each 4A or 1 ch. 7,0A and 3 ch. 3,0A - Parallel operation of 2 channels
- Operating modes: 4 x White, RGB, RGBW, Tunable White
- Automatic color temperature control Dim2Warm
- Dynamic daylight control HCL
(Human Centric Lighting) - Automatic time-dependent dimming
- Day/night function
- Overcurrent and overtemperature supervision
- Intelligent 16A C-Load Relay output to control external
LED power supply (not AKD-0424R2.02) - 3 years warranty
