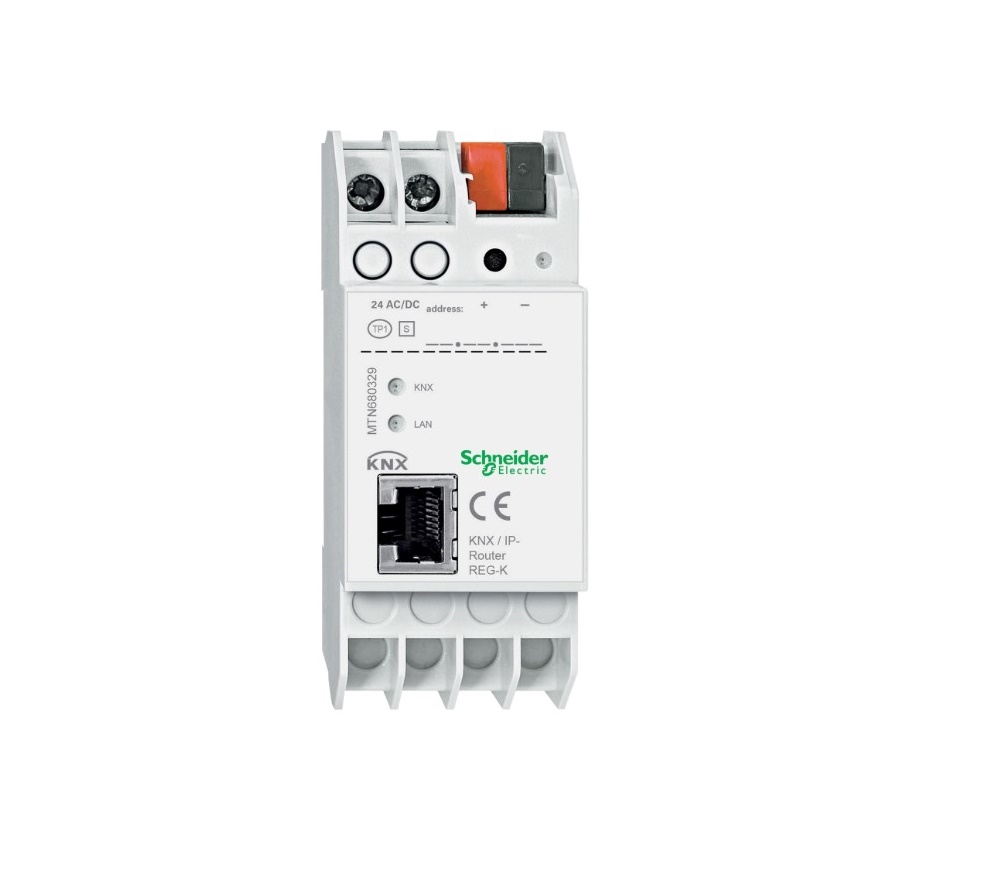

MTN680329 KNX System Componets

Main
The KNX/IP router enables telegrams to be forwarded between different lines via LAN (IP) as a rapid backbone. The
device can additionally serve as a programming interface in order to connect a PC with the KNX bus (e.g. for ETS programming with suitable ETS).
Complementary
The IP address can be assigned dynamically via a DHCP server or via manual configuration (ETS parameter). The
device operates in accordance with the KNXnet/IP specification using Core, device management, tunnelling and routing.
The KNX/IP router forwards telegrams in both directions whilst taking a filter table into account and can buffer up to
150 telegrams.
For installation on DIN rails EN 50022. The bus is connected using a bus connecting terminal; a data rail is not necessary.
Supply voltage: DC 12-30 V (at DC 24 V 40 mA), AC 12-24 V
Device width: 2 modules = approx. 36 mm
Contents: With bus connecting terminal.
Colour: light grey
