PFC100

Се од електрика за вашиот дом

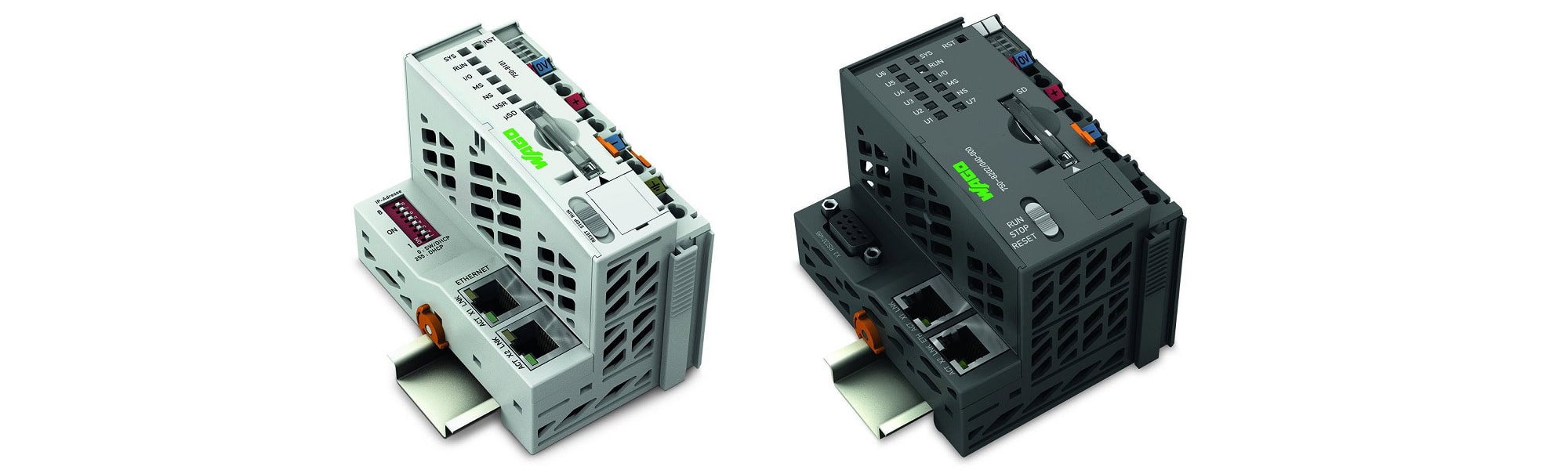

PFC100

Брошури: WAGO PLC

750-8100
Controller PFC100; 2 x ETHERNET; ECO

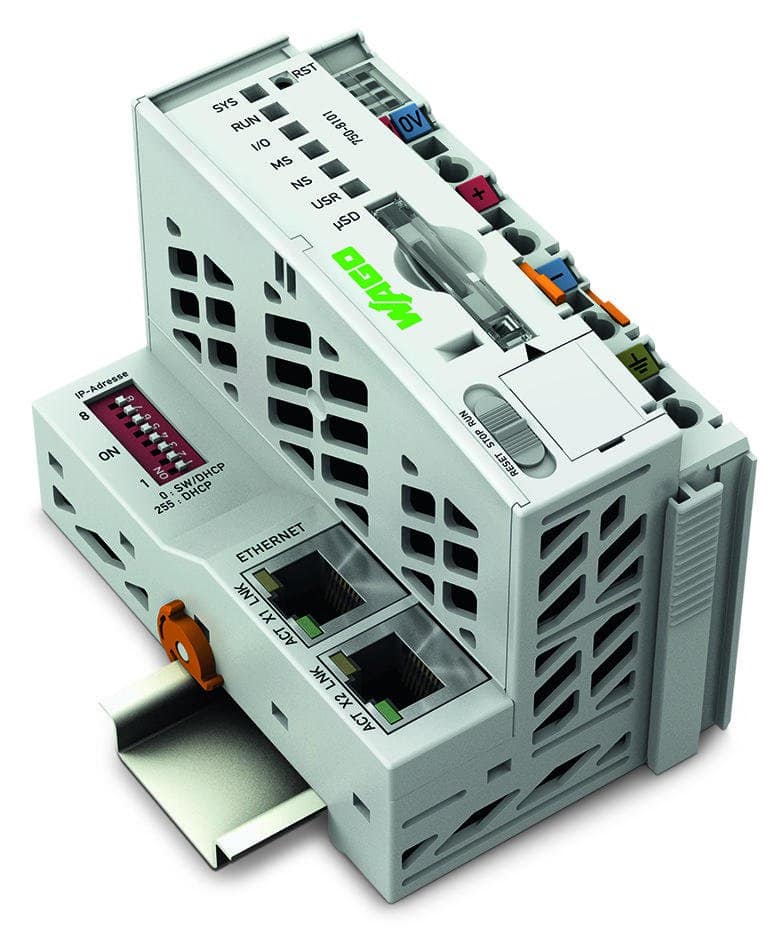

750-8101
Controller PFC100; 2 x ETHERNET
750-8101/000-010
Controller PFC100; FG0; 2 x ETHERNET

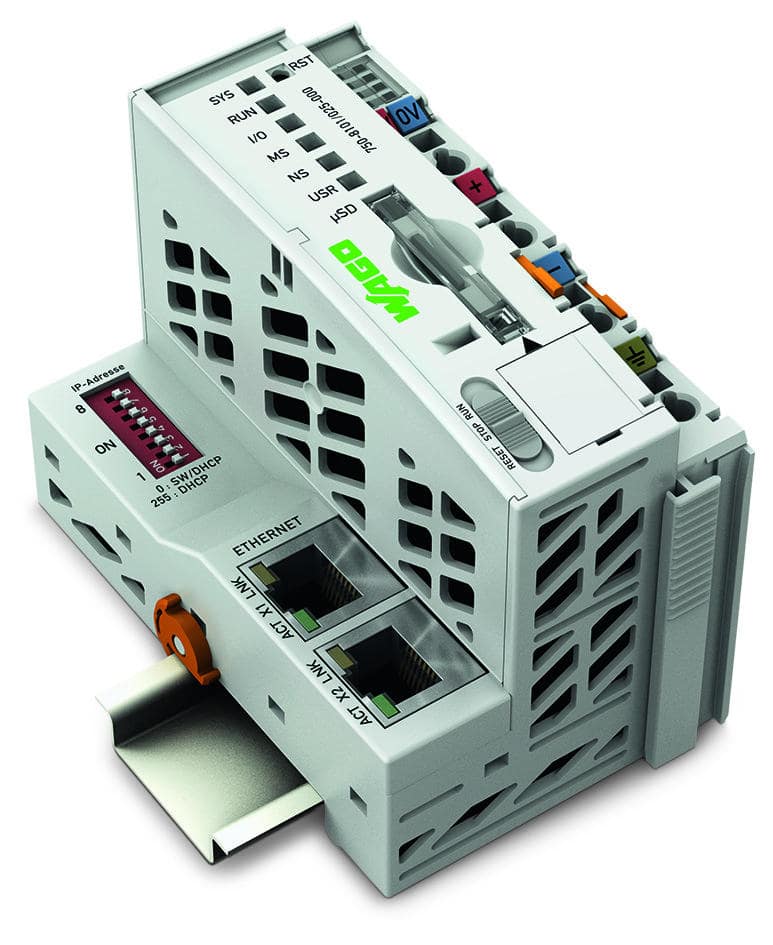

750-8101/025-000
Controller PFC100; 2 x ETHERNET; Ext. Temperature

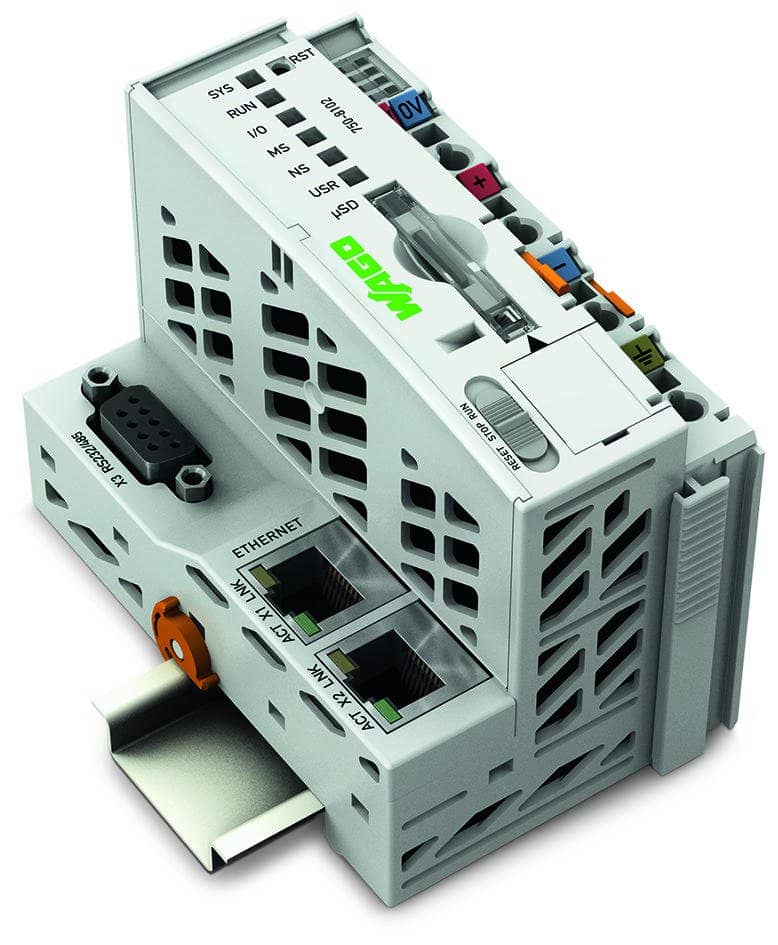

750-8102
Controller PFC100; 2 x ETHERNET, RS-232/-485

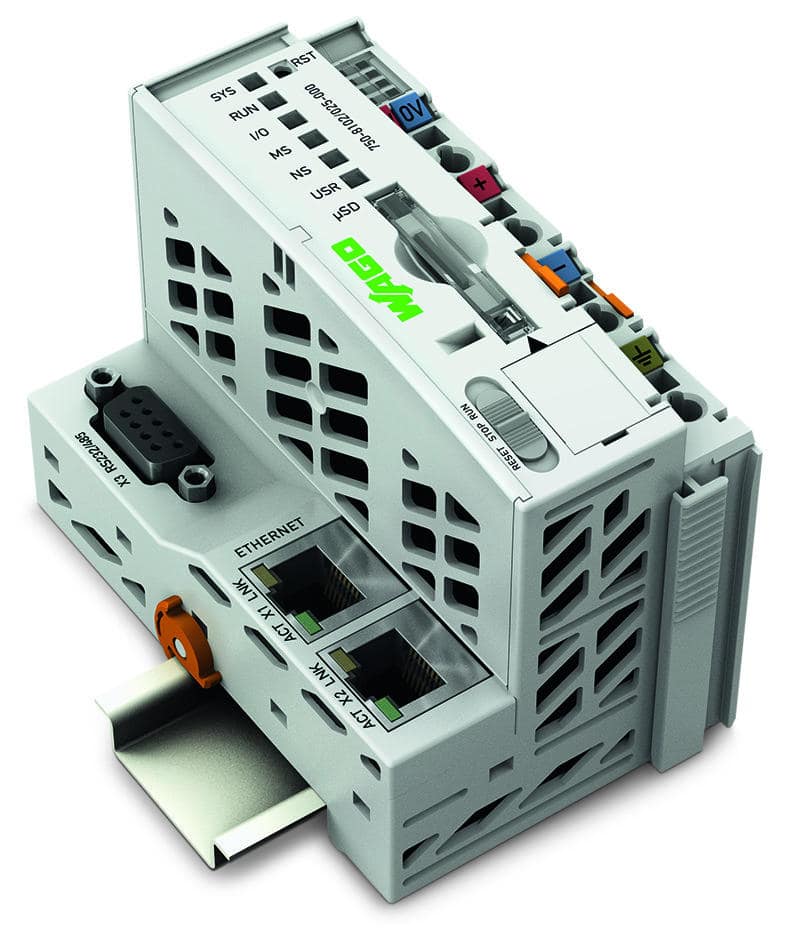

750-8102/025-000
Controller PFC100; 2 x ETHERNET, RS-232/-485; Ext. Temperature

The PFC100 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the 750/753 Series. Two ETHERNET interfaces and an integrated switch enable line topology wiring. An integrated Webserver provides user configuration options, while displaying PFC100 status information. Besides the processing industry and building automation, typical applications for the PFC100 include standard machinery and equipment control (e. g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines). The DIP switch configures the last byte of the IP address and may be used for IP address assignment. Programming per IEC 61131-3

-Programmable via e!COCKPIT Direct connection of WAGO I/O modules
-2 x ETHERNET (configurable) Linux 3.18 operating system with RT-Preemption patch
-Configuration via e!COCKPIT or Web-Based Management user interface
-Maintenance-free

PFC100 XTR (екстремни услови)

750-8202/040-001
Controller PFC200; 2 x ETHERNET, RS-232/-485; Telecontrol technology; Extreme
750-8206/040-000
Controller PFC200; 2 x ETHERNET, RS-232/-485, CAN, CANopen, PROFIBUS Slave; Extreme
750-8202/040-000
Controller PFC200; 2 x ETHERNET, RS-232/-485; Extreme

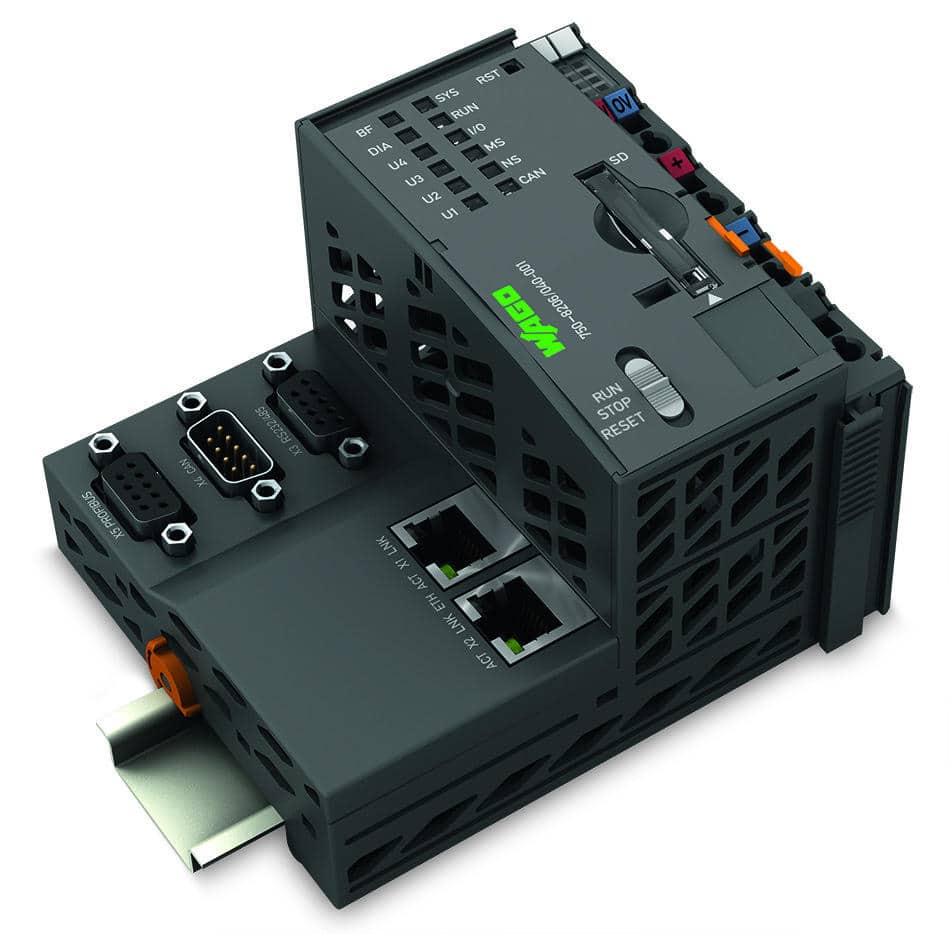

750-8206/040-001
Controller PFC200; 2 x ETHERNET, RS-232/-485, CAN, CANopen, PROFIBUS Slave; Telecontrol technology; Extreme

The PFC200 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty modules found within the 750/753 Series. Two ETHERNET interfaces and an integrated switch enable line topology wiring. An integrated Webserver provides user configuration options, while displaying PFC200 status information. Besides the processing industry and building automation, typical applications for the PFC200 include standard machinery and equipment control (e. g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines). Programming per IEC 61131-3
-Programmable via WAGO-I/O-PRO V2.3 Direct connection of WAGO I/O modules
-2 x ETHERNET (configurable), RS-232/-485
-Linux operating system with RT‐Preempt patch
-Configuration via CODESYS or Web-Based Management interface
-Maintenance-free
The device is ideal for operation in extreme environments:
-Extended temperature range
– Greater immunity to impulse voltages and electromagnetic interference
-Higher vibration and shock resistance
